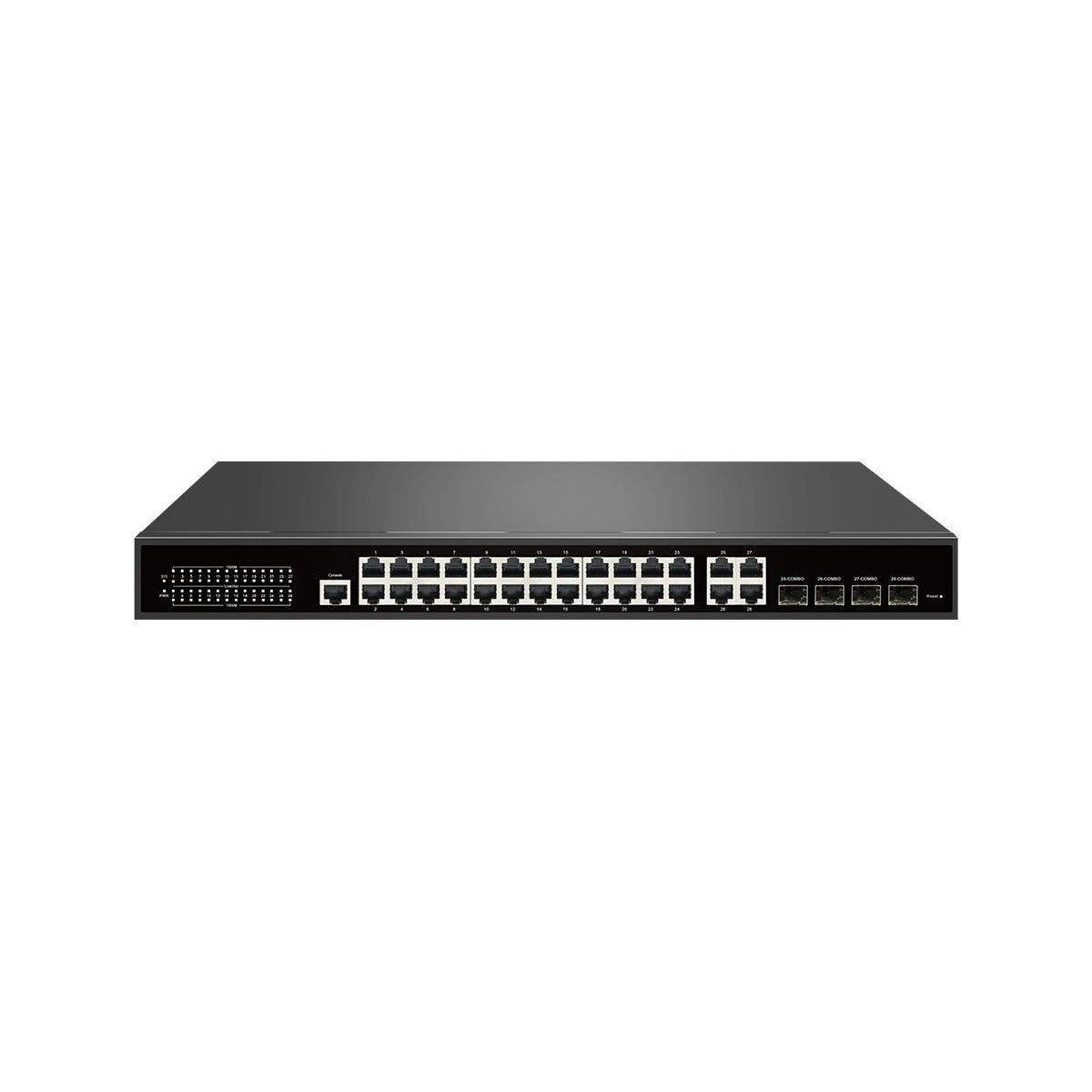

TSn-24GP28C4M Управляемый L2 PoE коммутатор

Параметры

Порты

1-24 : 10/100/1000 Мбит Мбит/с PoE порты до 30Вт

25-28: 10/100/1000 Мбит/с комбо Uplink медь/SFP

29 : Консольный порт управления

Скорость передачи данных

2000 Мбит/с полный дуплех, 10/100/1000 Мбит/с полудуплех

Расстояние

10/100/1000 Мбит/с при длине кабеля до 130 метров скорость составляет 1000 Мбит/с

Стандарты

IEEE 802.3i?IEEE 802.3u?IEEE802.3ab?IEEE802.3x?IEEE802.3az, IEEE802.3af?IEEE802.3at

Коммутационная матрица

56 ГБит/с

Метод передачи

Store-and-Forward

Таблица MAC адресов

8К

Скорость передачи пакетов

41.67 Mpps, pacet buffer 4.1 Mbit

Jumbo Frame

12KBytes

PoE

Порты 1-24: 1/2(+52В), 3/6(GND) 30Вт

L3 Switching Features

Static Routing: IPv4/IPv6

Address Resolution Protocol (ARP): Static ARP

L2 Switching Features

8K MAC Address Table

10K (10000) Jumbo Frame

Flow Control: 802.3x (Full-duplex), Back-Pressure (Half-duplex)

Spanning Tree: IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP)/16 instances,

Auto Edge Port,BPDU Filtering,ERPS

Link Aggregation: IEEE 802.3ad LACP, Static Trunk, Max 8 Group, Max 8 Ports/Group, Traffic Load Balancing

VLAN

Surveillance VLAN: 16 OUI Mode (Auto/Manual)

Voice VLAN: 16 OUI Mode (Auto/Manual)

QinQ (IEEE 802.1ad): Basic

GARP VLAN Registration Protocol (GVRP)

4096 Static VLAN

IEEE 802.1Q Tagged-based

8 groups Protocol-based

256 MAC-based

Multicast

Common: 256 Multicast Groups, Immediate Leave, Static/Forbidden Router Port,

Static/Forbidden Forward Port, 128 profiles Filtering, Throttling

IGMP Snooping: IGMP v1/v2, IGMP v3 Basic (BISS), IGMP v2/v3 Querier

MLD Snooping: MLD v1/v2

Multicast VLAN Registration (MVR): IPv4

Quality of Service

Trusted QoS

(QoS)

Queue Scheduling: WRR, WFQ, Strict Pripority, Hybrid (WRR+SP or WFQ+SP)

Class of Service: Port-based, 802.1p, IP TOS Precedence, IP DSCP

Rate Limit: Port-based (Ingress/Egress)

Access Control List

ACL Type: L2/L3/L4, 512 MAC-based, 512 IPv4-based, 512 IPv6-based

(ACL)

PoE Function: Power, Current, Voltage, PoE Watch Dog

Access Rules: 1024

IPv6

IPv6 Host: Auto Configuration, Static IPv6 Address and Prefix Length, Static IPv6 Default Gateway,

IPv6 Neighbor Discovery (ND), IPv6 Duplicate Address Detection, ICMPv6

IPv6 Application: HTTP/HTTPS, TELNET, SSH, SNMP, TFTP, Syslog, PING, DHCPv6

Management

CLI: 3 sessions Console, 3 sessions Telnet (RFC854)

WebUI: HTTPS

SNMP (v1, v2c, v3)

File Management: Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup, Multiple Configurations

IPv6 Application: HTTP/HTTPS, TELNET, SSH, SNMP, TFTP, Syslog, PING, DHCPv6

Upload/Download: TFTP (RFC783), HTTP, UART

Time Management: Local, SNTP

Port Management: Friendly Port Name (Port Description), Error Disabled Recovery

Line Management: Console, Telnet (RFC854), SSH v1/v2

DHCP: Client

DNS: Client

Software Reset Button

IEEE (802.3az)

32 entries / type RMON Management

Security

AAA Authentication

8 TACACS+

Authentication Manager: IEEE 802.1X, MAC Auth, Web Auth, Guest VLAN, Port-based, Host-based

8 RADIUS

Account Manager: Local Authenticatoin, 8 Multiple User Account, Multi-Level Securiy (Manager/Operator),

Password Recovery Procedures

Management Access: Management VLAN, 256Management ACL

SSL: SSLv2, SSLv3, TLSv1

CLI: SSH v1/v2

Port Security: 256 Dynamic Lock

WebUI: HTTPS

Storm Control: Broadcast, Unknown Multicast, Unknown Unicast

Spanning Tree: BPDU Guard

Protected Port (Port Isolation)

Black Hole MAC

CPU Defence Engine

DoS Prevention

DHCP Snooping (with Option 82)

Dynamic ARP Inspection

256 IP Source Guard

IP/MAC/Port Binding (IMPB)

Dynamic VLAN Assignment

Discovery

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)

Diagnostics

UDLD

Syslog (RFC3164): Local RAM,Local Flash, 8 Remote Server

Mirroring: 4 sessions port-based (Many to One)

System Diagnostics: CPU Utilization, Memory Utilization, Port Utilization, Technical Support Log

Network Diagnostics: Ping Test, Traceroute

MIB

RFC1213 MIBII (System & Interface groups)

RFC2819 RMON I (1,2,3, & 9 groups)

RFC1493 Bridge

RFC2674 Bridge MIB Extensions

RFC1215 Generic Traps

RFC2737 Entity

RFC3635 Ethernet-Like

SNMP-Community-MIB

SNMPv3-MIB

Защита от перенапряжения

6кВ IEC61000-4-5

Защита от статического электричества

8кВ IEC61000-4-2

Питание

AC 90…240В не более 400Вт

Габариты

440х290х45 мм

Диапазон рабочих температур

от -0°С до +45°С

Температура хранения

от -40°С до +70°С

Относительная влажность

от 10 до 90% (без конденсата)

Комплект поставки

- Коммутатор

- Крепления в стойку

- Кабель питания

- Упаковочная тара

Примечание

Комплект поставки и любые технические характеристики могут быть изменены производителем в любое время без предварительного уведомления.
