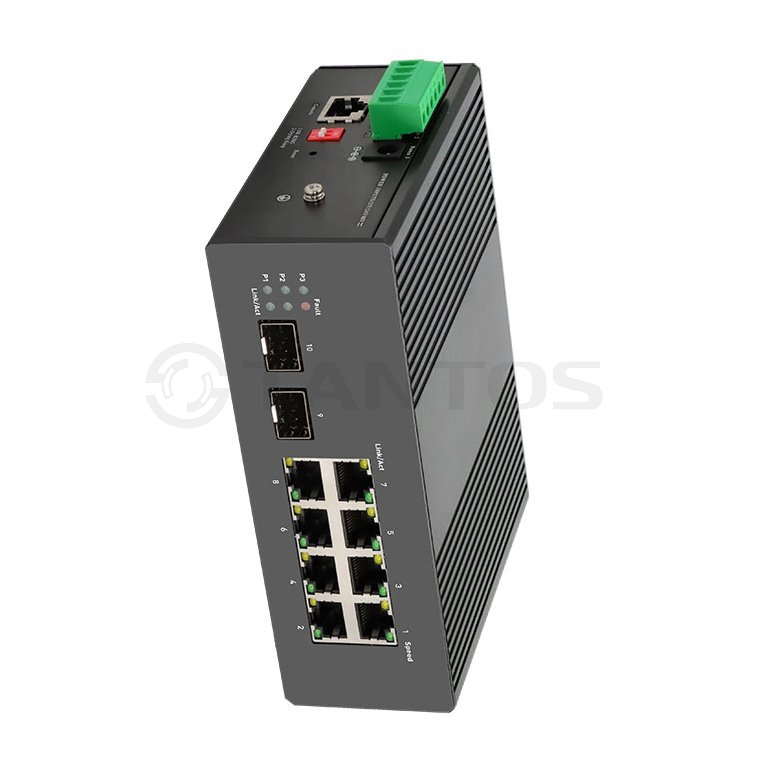

Промышленный управляемый L3/L2+ PoE коммутатор для работы в сложных условиях 8x1000 Мбит/с PoE портов, максимальная мощность PoE 30Вт на порт,+2 SFP 1000Мбит/с порта
Основные особенности:
Технические характеристики:
Параметры |
|

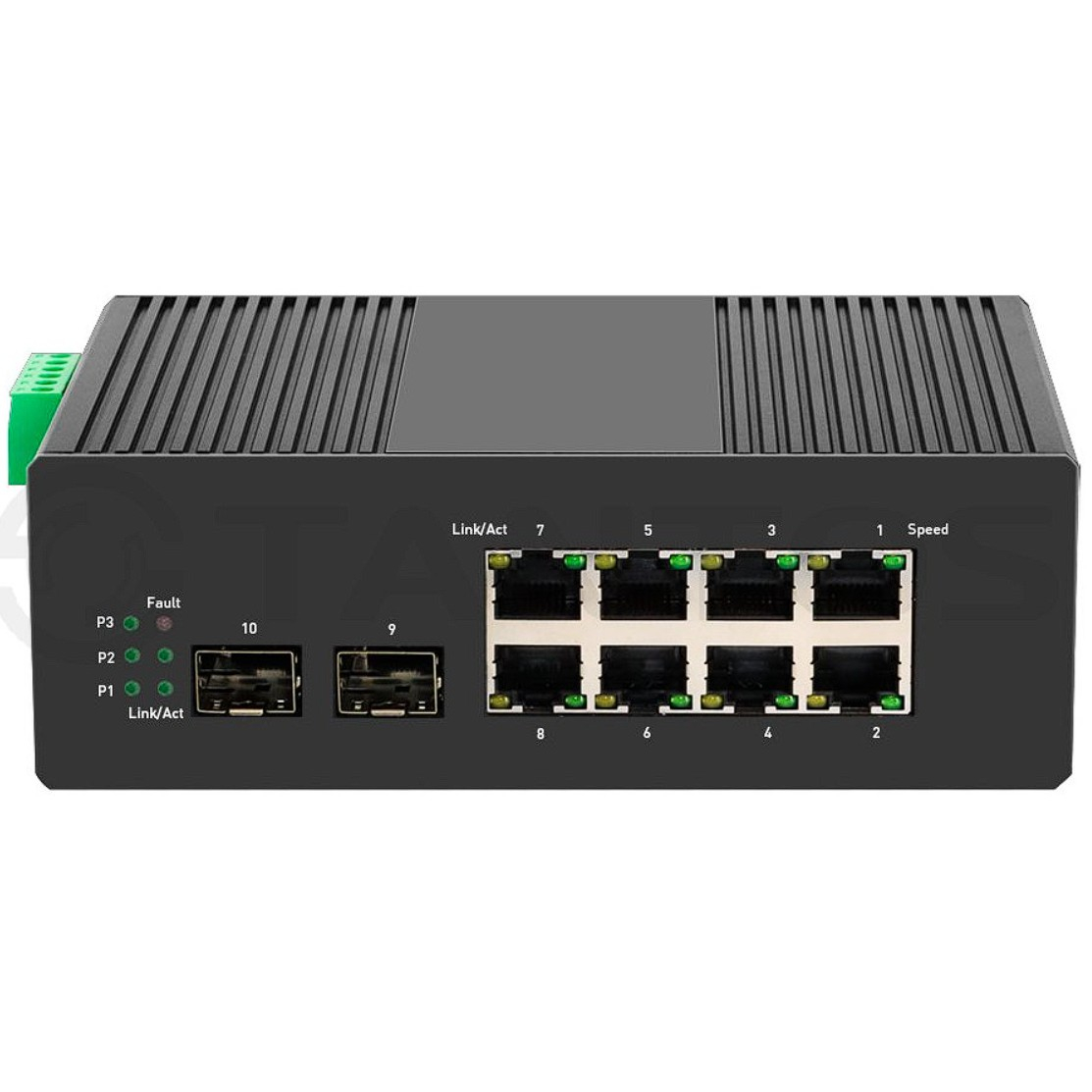

Порты |
1-8 : 10/100/1000 Мбит Мбит/с PoE порты до 30Вт |
9-10: 100/1000 Мбит/с SFP |
|

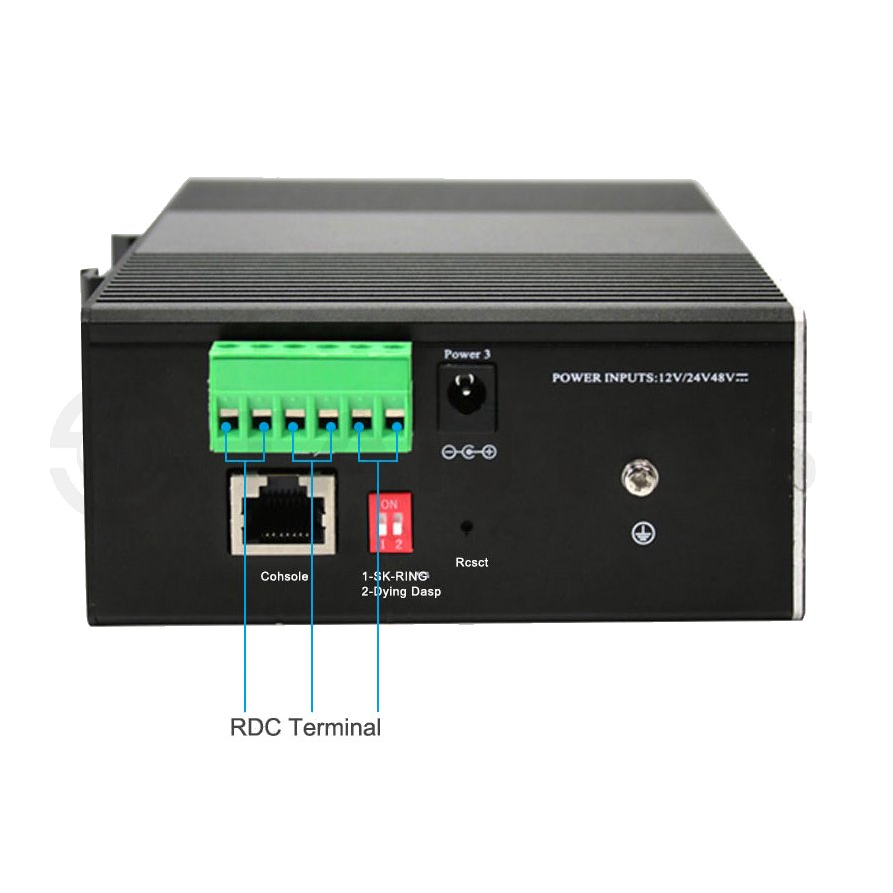

11 : Консольный порт управления |
|
1 группа тревожных выходов и релейных выходов, пользовательские условия срабатывания |
|
Скорость передачи данных |
2000 Мбит/с полный дуплех, 10/100/1000 Мбит/с полудуплех |
Расстояние |
10/100/1000 Мбит/с при длине кабеля до 100 метров скорость составляет 1000 Мбит/с |
Стандарты |
IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x,IEEE802.3z, IEEE802.3afI,EEE802.3at |
Коммутационная матрица |
20 ГБит/с |
Метод передачи |
Store-and-Forward |
Таблица MAC адресов |
8К |
Буфер |
4 Mb |
Power Supply Pin |
Only support 1/2 (+), 3/6 (-) 4-core power supply |
PoE |
Порты 1-8: 1/2(+52В), 3/6(GND) ?30Вт |
Power Consumption |
"Standby:<10W |
LED |
System indicator:SYS(green) |
Network Indicator: Link (yellow) |
|
SFP Indicator: L/A (green) |
|
PoE Indicator: PoE (green) |
|
Lightning Protection |
"Lightning protection: 6KV 8/20us |
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge |
|
IEC61000-4-3(RS):10V/m(80~1000MHz) |
|
"IEC61000-4-4(EFT): power cable: ±4kV |
|
"IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV |
|
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) |
|
"IEC61000-4-8(power frequency magnetic field):100A/m |
|
IEC61000-4-9(pulsed magnet field):1000A/m |
|
IEC61000-4-10(damped oscillation):30A/m 1MHz |
|
IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV |
|
"IEC61000-4-16(common-mode transmission):30V |
|
FCC Part 15/CISPR22(EN55022): Class A |
|
IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration) |
IEC60068-2-27 (anti shock) |
|
IEC60068-2-32 (free fall) |
|
Габариты |
155x114.1x51.7мм |
Диапазон рабочих температур |
от -40°С до +75°С, относительная влажность от 5 до 90% (без конденсата) |
Температура хранения |
от -40°С до +85°С, относительная влажность от 5 до 90% (без конденсата) |
Port |
Support IEEE802.3x flow control (full duplex) |
Support for broadcast storm suppression based on port rate |
|
Support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps |
|
Support port temperature protection settings |
|
Support port EEE green Ethernet energy saving configuration |
|
PoE Management |
Support total power limit configuration for POE power supply |
Support PoE output power allocation per port, close / start af/at |
|
Support PoE output priority configuration per port |
|
Support PoE work status per port display |
|
Support PoE work and time scheduling |
|
Layer 3 Function |
L2+ network management function |
Support IPV4/IPV6 management |
|
Support layer3 soft routing (weak three tier) forwarding |
|
Support different network segments, communication between different VLAN |
|
Support static routing / default routing 128, 1024 ARP software forwarding |
|
VLAN |
Support port based VLAN (4K), IEEE802.1q |
Support protocol based VLAN |
|
Support Voice VLAN |
|
Support for MAC address-based VLANs |
|
Support Access, Trunk, Hybrid three types of port configuration |
|
Port Aggregation |
Support LACP |
Support static polymerization |
|
"Support the largest 8 aggregation groups |
|
Spanning Tree |
Support STP (IEEE802.1d) |
Support RSTP (IEEE802.1w) |
|
Support MSTP (IEEE802.1s |
|
Industrial Ring Network |
Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring |
Protocol |
The self-healing time of the ring network is less than 20ms |
Diagnostics |
UDLD |
Syslog (RFC3164): Local RAM,Local Flash, 8 Remote Server |
|
Mirroring: 4 sessions port-based (Many to One) |
|
System Diagnostics: CPU Utilization, Memory Utilization, Port Utilization, Technical Support Log |
|
Network Diagnostics: Ping Test, Traceroute |
|
Multicast |
Support IGMP Snooping V1/V2 and support 1024 multicast groups at most |
Support the users quick departure mechanism |
|
Support MLD Snooping V1/V2 |
|
Support multicast VLAN |
|
Mirror |
Bi-directional traffic mirroring supporting the basic port |
QoS |
Support Diff-Serv QoS |
Each port supports 8 output queues |
|
Support 802.1p/DSCP priority mapping |
|
Support queue scheduling mechanism (SP, WRR, SP+WRR) |
|
Support priority tag Mark/Remark |
|
Support stream based packet filtering |
|
Support for stream based redirection |
|
Support flow based speed limi |
|
ACL |
Support L2 to L4 packet filtering function, match the first 80 bytes of the message |
Provide based on the source MAC address, destination MAC address, source IP address, destination IP address, |
|
ACL IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition |
|
Support ACL based on port and VLAN |
|
Safety |
Support user grading management and password protection |
Characteristics |
Support IEEE802.1X authentication / centralized MAC address authentication |
Support AAA&RADIUS authentication |
|
Support the number of MAC address learning restrictions |
|
Support MAC address black hole |
|
Support SSH 2.0 to provide secure passwords for user login |
|
Support SSL to ensure data transmission security |
|
Support port isolation |
|
Support the speed limit function of ARP message |
|
Support IP source address protection |
|
Support ARP intrusion detection function |
|
Support against DoS attacks |
|
Support port broadcast message suppression |
|
Support host data backup mechanism |
|
Binding capabilities of IP+MAC+VLAN+ ports |
|
DHCP |
Support DHCP Client |
Support DHCP Snooping |
|
Management And |
Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration |
Maintenance |
Support WEB network management (HTTPS) |
Support FTP, TFTP, Xmodem, SFTP file download management |
|
Support SNMP V1/V2C/V3 |
|
Support one bond reduction |
|
Support NTP clock Support system work log Support Ping detection |
|
Support cable state detection |
|
Support CPU instant utilization status view |
|
Support link layer discovery protocol LLDP center |
|
System Requirements |
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or |
higher, Microsoft Internet Explorer10 or later |
|
Cat5e or later Ethernet cable |
|
TCP/ IP, network adapter and network operating system (Microsoft Windows, |
|
Linux or Mac OS X) installed on on every computer in the network. |
|
Примечание |
Комплект поставки и любые технические характеристики могут быть изменены производителем в любое время без предварительного уведомления. |
